Commercial Dumbwaiters

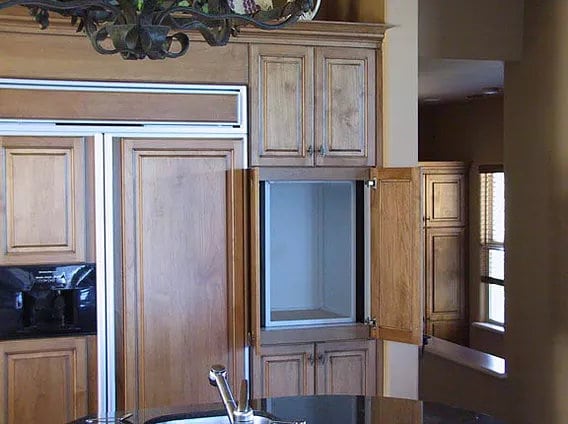

Powerlift 200 Dumbwaiter
Every dumbwaiter we build is custom made to your specifications, unlike other manufactures who provide a "one size" machine, forcing you to design your life around the limitations of their product.
Specifications
- 200 Lbs Capacity.
- We custom build each dumbwaiter to give you the largest car possible. Maximum car size for the Powerlift 200 is (30" x 30" x 30" High)
- Call / send buttons, door locks, and door safety switches furnished.
- Adjustable limits. NOTE: The limits are preset to you specs, but are easily adjustable in the field.
- 3/4 HP - 220 or 110 volt motor.
- Bottom or top motor mount.
- Size 40 roller chain. (3125 lbs tensile breaking strength)
- Powder coated rail assembly, trolley, and car.
- Pillow block top fixture.
- Elevator interlocks available.
- Top and bottom final limits available.
- Keyed on / off switch available to lock the dumbwaiter when parents are not at home to supervise children.
- Powder coated car panels available.
- ASME 17.1 package available.
- Car gates, slide-up, or bi-parting, available.
- Metal access and hoist way doors available.
- Car here lights available.
- Car shelves available.
- Stainless steel cars available.
- Stainless steel units available.
- 220V - 3/4 HP motor available.
- 240 Volt - 3/4 HP 50 Hz motors for European markets available.

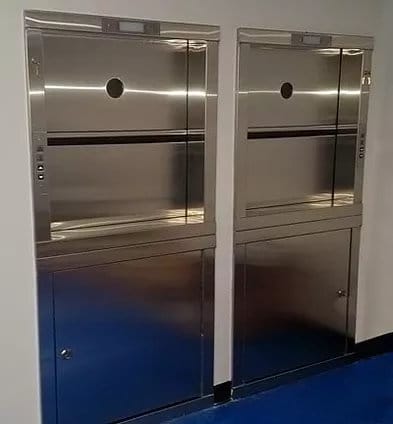

Powerlift 300 Dumbwaiter
We custom build each dumbwaiter to give you the largest car possible.
Specifications
- 300 Lbs Capacity.
- We custom build each dumbwaiter to give you the largest car possible. Maximum car size for the Powerlift 300 is (30" x 30" x 36" High)
- UL Listed Elevator/Dumbwaiter controller. (UL#233908)
- Meets ASME 17.1.
- Dumbwaiter car can be open on any 3 sides at no additional charge.
- Call / send buttons, door interlocks, and door safety switches furnished.
- Adjustable limits. NOTE: The limits are preset to your specs, but are easily adjustable in the field.
- 1 HP - 220 volt motor, or 240 volt, or 480 volt 3 phase motor.
- Bottom or top motor mount.
- Size 40 roller chain. (3125 lbs tensile breaking strength)
- Pillow block top fixture.
- Top and bottom final limits.
- Powder coated rail assembly, trolley, and car.
- Keyed on / off switch available locks the dumbwaiter to keep children or unauthorized personnel from operating machine.
- 50Hz motor for European markets available.
- Powder coated car panels available.
- Car gates, slide-up or bi-parting, available.
- Metal access and hoist way doors available.
- Emergency stop switches available.
- Car here lights available.
- Car shelves available.
- Stainless steel cars available.
- Stainless steel units available.

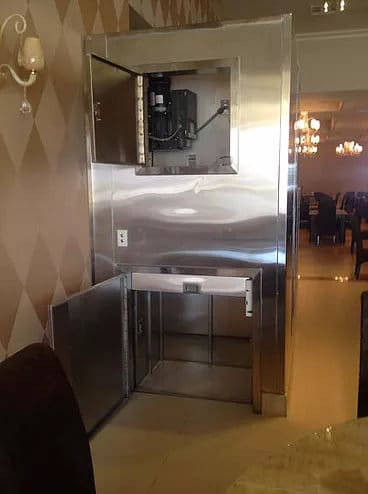

Powerlift MJ-500 Dumbwaiter
Explore vertical platform lifts for schools, churches or public buildings.
Specifications
- 500 Lbs Capacity.
- We custom build each dumbwaiter to give you the largest car possible. Maximum car size for the Powerlift MJ-500 is (36" x 36" x 48" High)
- Dumbwaiter installs in hours, not days.
- UL Listed Elevator/Dumbwaiter controller. (UL#233908)
- Meets ASME 17.1.
- Dumbwaiter car can be open on any 3 sides at no additional charge.
- Call / send buttons, door interlocks, and door safety switches and 1 Emergency Stop Switch furnished. (NOTE: Additional Emergency Stop Switches are available.)
- Comes with one scissor car gate.
- Additional car gates available.
- Adjustable limits. NOTE: The limits are preset to your specs, but are easily adjustable in the field.
- 1 HP - 208 volt, 240 volt, or 480 volt 3 phase motor comes standard with the MJ-500. A 1-1/2 HP 220 Volt 60Hz single phase motor is available.
- Bottom or top motor mount.
- Size 50 roller chain. (4880 lbs tensile breaking strength)
- Pillow block top fixture.
- Top and bottom final limits.
- Powder coated rail assembly, trolley, and car.
- 50Hz motor for European markets available.
- Keyed on / off switch available, locks the dumbwaiter to keep unauthorized personnel from operating the unit.
- Powder coated car panels available.
- Slide Up, and Bi-parting car gates available.
- Metal access and hoist way doors available.
- Car here lights available.
- Car shelves available.
- Stainless steel cars available.
- Stainless steel units available.
