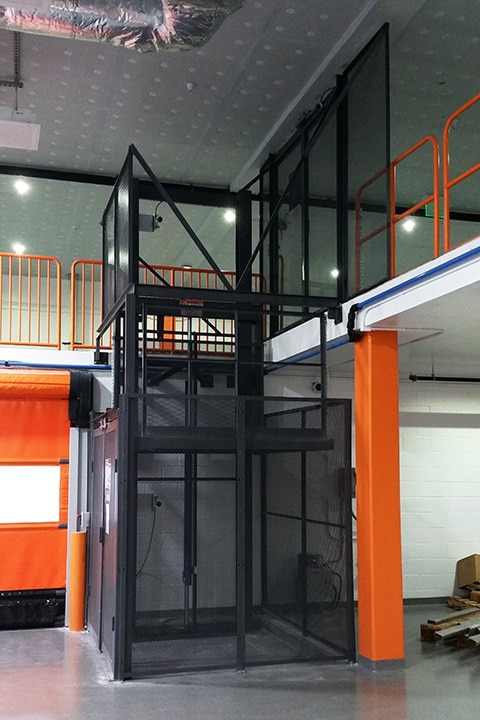

PFlow Hydraulic Vertical Lifts – D Series

PFlow Hydraulic Vertical Lifts - D Series



  • Remote mounted control panel and motor are pre-wired and ready for immediate installation.
  • Cantilever carriage is lifted and lowered by dual 2” direct-acting hydraulic cylinders mounted between 6” guide columns.
  • Guided Dual-Pak design is direct action and has no cables, chains, sheaves, sprockets, bearings or other components that can break or require lubrication for long-term performance.
  • Pressure switch prevents the carriage from drifting or sinking providing a highly stable loading and unloading operation.
  • Velocity fuses prevent uncontrolled descent in the event of an unlikely hose rupture.
  • Check valves hold the carriage in place in the event of power loss.
  • Pressure compensated control valve regulates the flow of hydraulic oil for a constant lowering speed under any load.
  • Ultra-high molecular weight, polyethylene cylinder guide prevents cylinders from twisting during operation – improving cylinder life.
  • Optional quick-connect cabling for push-button stations and gate interlocks greatly reduce the field-wiring costs.
  • Optional hot-dipped galvanized or epoxy finish for outdoor or wash-down environments.
  • Optional explosion proof components available for classified environments.
  • Conforms to ASME B20.1 Safety Standards
  • Lifts loads up to 3,000 lbs
  • Carriage sizes up to 6’ x 6’
  • Standard vertical rise to 15’
  • Standard travel speed is 17 FPM
  • Indoor or outdoor use
  • Lifetime structural warranty
